Beidou Module

SKYLAB has developed the Beidou module for applications such as vehicle and law enforcement instruments. It has the characteristics of high positioning accuracy, ultra-low power consumption, and small size. It also supports multi-system joint positioning and single-system independent positioning. The internal Flash of the Beidou module can be upgraded. It has an additional front LNA for optimized RF performance and easy integration with the antenna. And the front SAW filter strengthens the anti-jamming performance.

Beidou module application: positioning system LBS, vehicle navigation, driving recorder, law enforcement instrument, high-definition camera, surveying and mapping, handheld equipment, smart agriculture, etc.

Get A Free Sample

Show 1-16 of 17 products

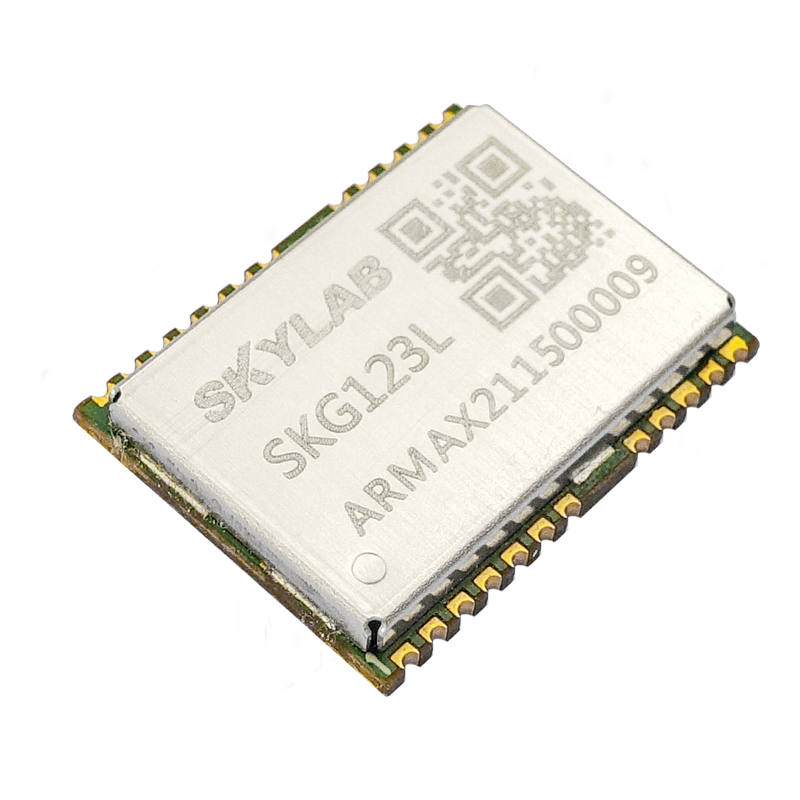

Dual Band GNSS Navigation Positioning Module SKG123

  • Receiver ：GPS, GLO, GAL, BDS, QZSS, SBAS
  • Dual frequency：L1+L5
  • Support:RTK

DETAILS

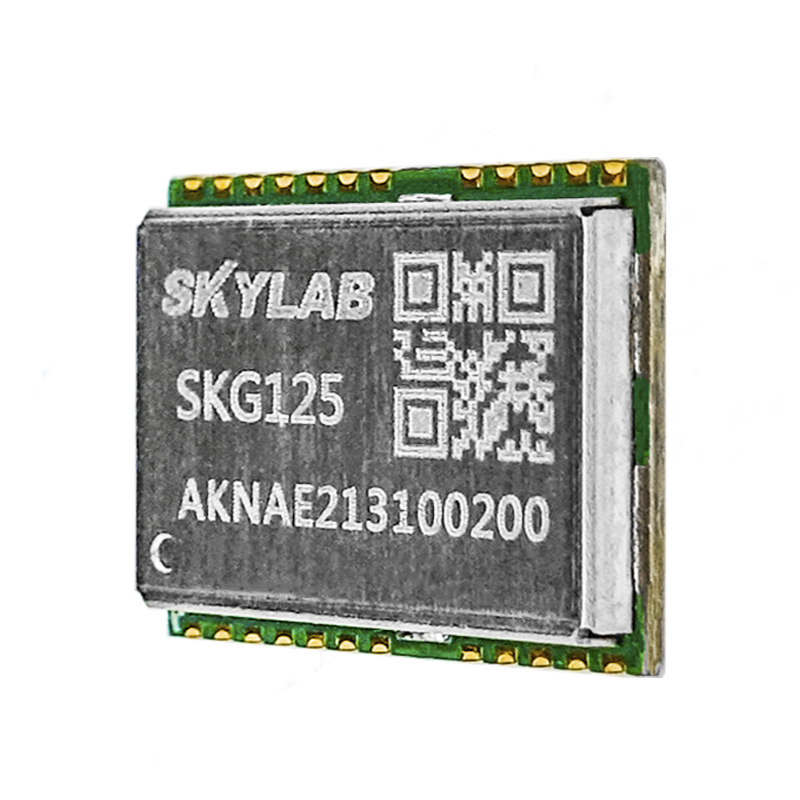

Dual-mode Navigation Positioning Module SKG125

  • Receiver type:BDS ,GPS, GLONASS
  • Positioning accuracy:<3m
  • Dimension(L×W×H):16.4*12.2*2.4（mm）

DETAILS

GNSS Satellite Navigation and Positioning Module LSC-4D

  • Sensitivity:-163dBm
  • Receiver Type:GPS ,BDS
  • Dimension(L×W×H):16.0*12.2*2.4（mm）

DETAILS

GPS/Beidou-3 /GLONASS Positioning Module SKG093Q

  • Receiver:GPS、GLONASS、BDS3
  • Positioning Accuracy:<2.5m
  • Dimension(L×W×H):10.1*9.7*2.2（mm）

DETAILS

High Performance GNSS Integrated Module LS-TM8N

  • Positioning Accuracy:3.0m
  • Receiver Type:GPS ,BDS,GLONASS
  • Dimension(L×W×H):16*12.2*2.4（mm）

DETAILS

High-Performance UAV/ Drone GNSS GPS GLONASS Module SKG12D

SKG12D High-performance GNSS
  • Chipset: MediaTek MTK MT3333
  • Dissipation Power: 100mW
  • Supply Voltage: 3.0~4.2V

DETAILS

Industrial Grade GNSS Positioning Module SKG128S

  • Receiver:GPS、BDS、GLONASS
  • Time accuracy:±20ns
  • Dimension:16.0*12.2*2.4（mm）

DETAILS

L1 Single Frequency Beidou3/GPS module SKG123Q

  • Receiver:GPS、GLONASS、BDS3
  • Positioning Accuracy:<2.5m
  • Dimension(L×W×H):16.0*12.2*2.4（mm）

DETAILS

L1+L5 Dual Band GNSS Navigation Positioning Module SKG123NRD

DETAILS

L1+L5 Dual Frequency Positioning Module SKG122Y

  • Dual Frequency:L1+L5
  • Receiver Type:GPS ,BDS,GLONASS
  • Dimension(L×W×H):16*12.2*2.4（mm）

DETAILS

MT3331 High-performance GNSS Positioning Module SKG09F

  • Chip solution:MediaTek MT3331
  • Size:10.1x 9.7x 2.2mm
  • Ultra high sensitivity:-165dBm

DETAILS

MT3331Small Size GNSS Positioning Module SKG12F

  • Chip:MT3331
  • Receiver Type:GPS/BDS/QZSS
  • Dimension(L×W×H):16*12.2*2.4(mm)

DETAILS

MT3333 Navigation Location GNSS GLONASS Module SKG09D

  • Receiver type:GPS/GLONASS/BD /GALILEO
  • Positioning accuracy:SBAS2.5m
  • Dimension(L×W×H):10.1*9.7*2.2(mm)

DETAILS

Navigation Positioning GNSS Module SKG1223

  • Receiver type:BDS
  • Voltage:3.0~3.6V
  • Dimension(L×W×H)::16.0*12.2*2.4（mm）

DETAILS

Positioning and Navigation MT3333 GPS+BDS GLONASS Receiver Module SKG17D

  • Chip:MT3333
  • Receiver type:GPS,BDS,GLONASS
  • Dimension(L×W×H):22.9*17*2.9(mm)

DETAILS

Single Frequency Beidou 3 Positioning Module SKG092C

  • Accuracy:Open-Sky CEP<2.5m
  • Receiver Type:BDS3、GPS、GLONASS
  • Dimension(L×W×H):10.1*9.7*2.2（mm）

DETAILS

Didn't find what you wanted? Contact us
