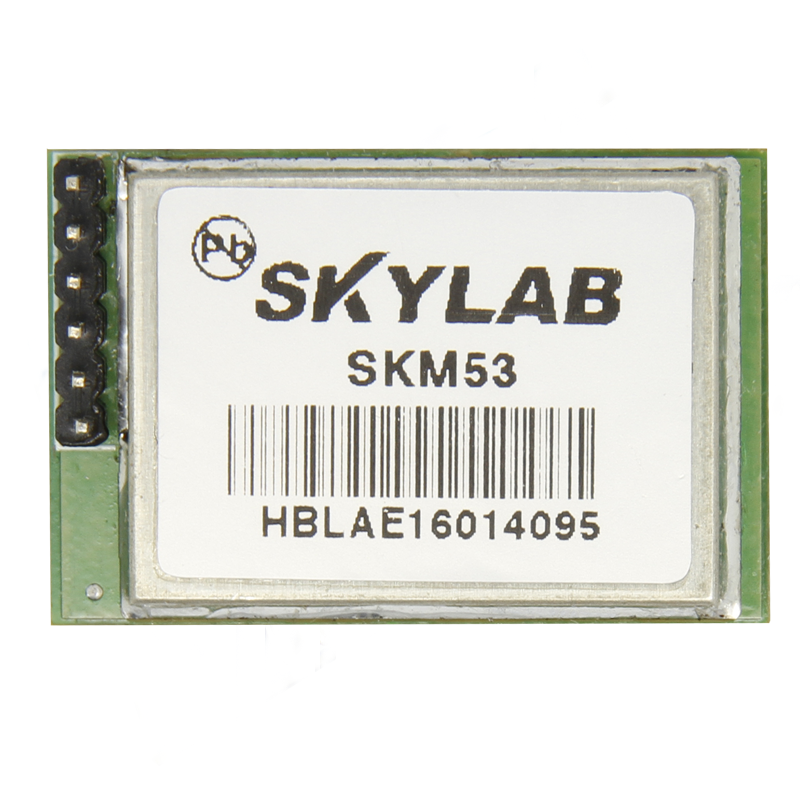

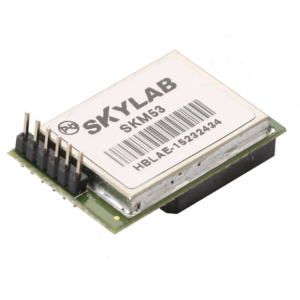

The SKYLAB SKM53 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.
Read More| Chip | MediaTek MT3339 |
| Positioning accuracy | 3m |
| Dimension(L×W×H) | 30*20*8.5（mm） |
The SKYLAB SKM53 Series with embedded GPS antenna enables high performance navigation in the most stringent applications and solid fix even in harsh GPS visibility environments.
It is based on the high performance features of the MediaTek 3339 single-chip architecture, Its –165dB mtracking sensitivity extends positioning coverage into place like urban canyons and dense foliage environment where the GPS was not possible before. The 6-pin UART connector design is the easiest and convenient solution to be embedded in a portable device and receiver like PND, GPS mouse, car holder, personal locator, speed camera detector and vehicle locator.
Features：
◆Ultra high sensitivity: -165dBm
◆22 tracking/66 acquisition-channel receiver
◆WAAS/EGNOS/MSAS/GAGAN support
◆NMEA protocols (default speed: 9600bps)
◆Internal back-up battery
◆One serial port and USB port (option)

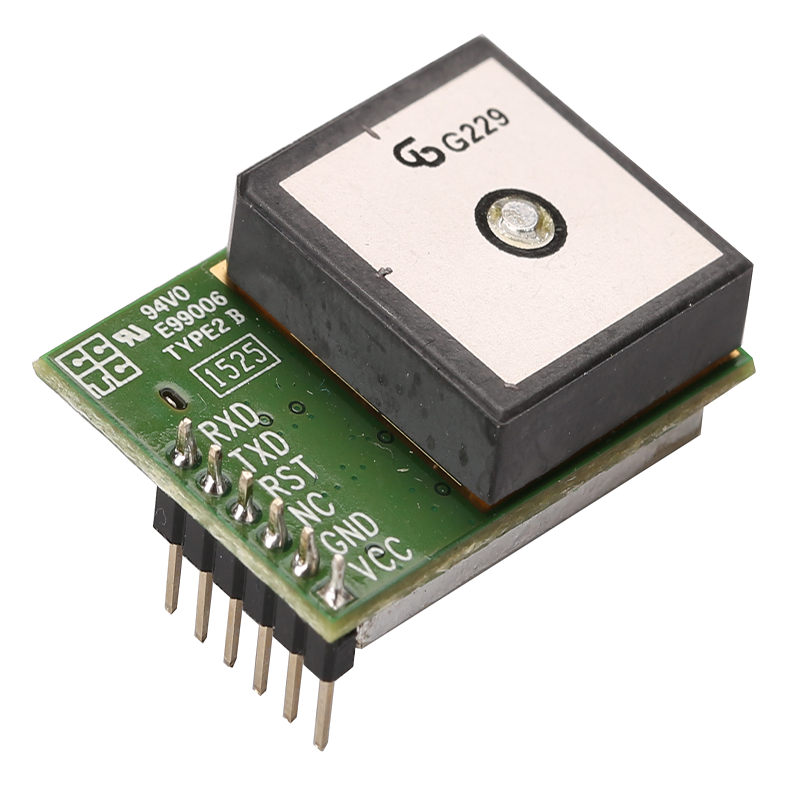

◆Embedded patch antenna 18.2 x 18.2 x 4.0 mm
◆Operating temperature range: -40 to 85℃
◆RoHS compliant (Lead-free)
◆Tiny form factor ：30mm x20mm x 8.5mm
| Parameter | Specification |
| GPS receiver | |
| Receiver Type | L1 frequency band, C/A code, 22 Tracking / 66 Acquisition-Channel |
| Sensitivity | Tracking:-165dBm Acquisition:-148dBm |
| Accuracy | Position:3.0m CEP50 without SA(Typical OpenSky) Velocity:0.1m/s without SA Timing (PPS):60ns RMS |
| Power Consumption | Cold Start:23s Warm Start:2-3s Hot Start:1s Re-Acquisition:<1s |
| Navigation Data Update Rate | 1Hz |
| Operational Limits | Altitude:Max 18,000m Velocity:Max 515m/s Acceleration:Less than 4g |
| Antenna Specifications | |
| Outline Dimension | 18.2 x 18.2 x 4.0 mm |
| Center Frequency | 1575 ± 3 MHz |
| Bandwidth | 10 MHz min |
| Impedance | 50 Ω |
| Axial Ratio | 3 dB max |
| Polarization | RHCP |
| Mechanical requirements | |
| Dimension | 30mm x20mm x 8.5mm |
| Weight | 9g |
| Power consumption | |
| VCC | 3.3V~5V |
| Current | 50mA(typical) |
| Environment | |
| Operating temperature | -40 ~ +85 ℃ (w/o backup battery) |
| Storage temperature | -40 ~ +125 ℃ |
| Humidity | ≦95% |
◆ LBS (Location Based Service)
◆ Vehicle navigation system
◆ PND (Portable Navigation Device)
◆ GPS mouse and Bluetooth GPS receiver
◆ Timing application
