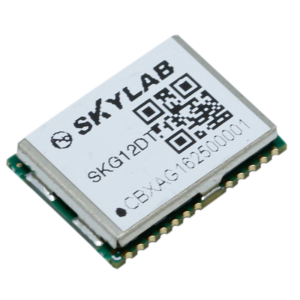

High Performance GNSS Timing Module SKG12DT

The SKG12DT is a high-performance GNSS all-in-one solution Timing module that features super sensitivity, ultra low power and small form factor. The RF signal is applied to the antenna input of module, and a complete serial data message with position, velocity and time information is presented at the serial interface with NMEA protocol or custom protocol.

It is based on the high performance features of the single-chip architecture, Its –165dBm tracking sensitivity extends positioning coverage into places like urban canyons and dense foliage environment where the GNSS was not possible before. The small form factor and low power consumption make the module easy to integrate into portable device like PNDs, mobile phones, cameras and vehicle navigation systems.

Features：

◆BD B1/GPS L1/QZSS

◆Ultra high sensitivity: -165dBm

◆ Extremely fast TTFF at low signal level

◆Ultra low power consumption

◆ ±15ns high accuracy time pulse (1PPS)

◆SBAS (WAAS,EGNOS,MSAS,GAGAN)

◆Small form factor: 16.0 x 12.2 x 2.2mm

◆ RoHS compliant (Lead-free)
