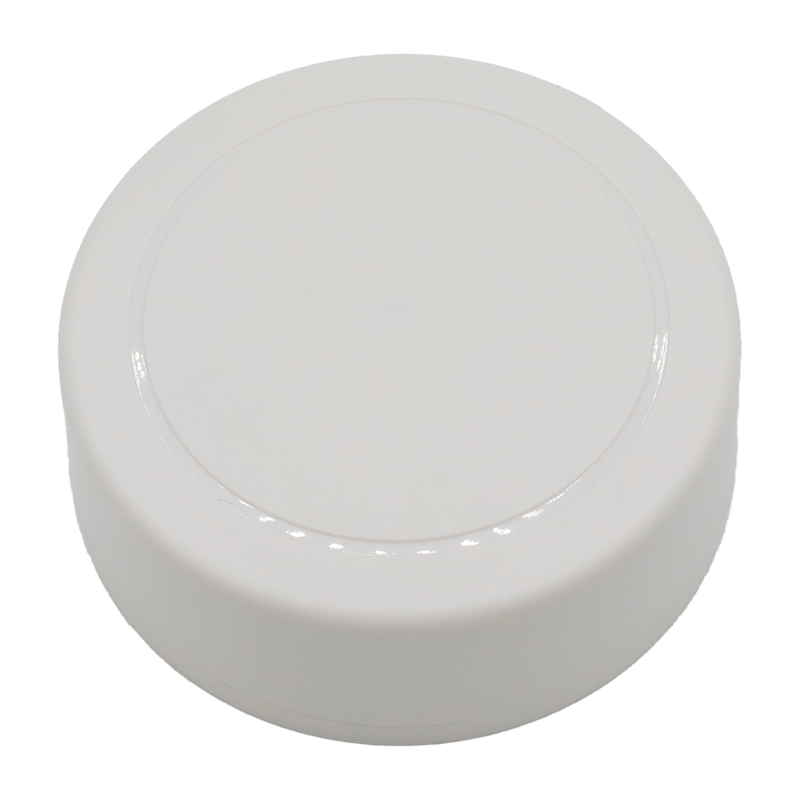

VDB07 is based on Bluetooth 4.2 module. It support hardware watchdog to enhance the reliability of long time running. It reserves a temperature & humidity sensor (not mounted by default).
Read More| Chipset | Nordic BLE 4.2 chip |
| Application | indoor navigation |
| Battery | ER14250 2 * 1200 mAh |
VDB07 is a Bluetooth Beacon device.This device supports 802.3af standard POE power supply,and can connect one of the network ports to the PSE port of the POE switch or other AP devices that support POE power supply, and then connect to the network port of the next beacon through another network port, and so on, to achieve a cascade of no less than 15 level beacons and a total network cable length of no more than 200m. Both the two network ports of the beacon can be used as POE inputs or outputs for easy deployment, and support LED status indicators for easy troubleshooting of deployment issues.
VDB07 beacon uses a broadcasting protocol which is based on BLE (Bluetooth Low Energy ).VDB07 broadcasts its general configure parameters like UUID, Major, Minor, RSSI etc. to surroundings over 37, 38 and 39 BLE channels continuously and non-directionally . The broadcasting information can be read by “95POWER_xbeacon” APP, which is designed by 95POWER R&D Team.
VDB07 features
◆ Low Power Consumption
◆ Small,Lightweight,Beautiful appearance
◆ Flexible Application
◆ Easy to Install(Rotary buckle installation)
◆ Advertise Range up to 70 Meters
◆ RoHS compliance (Lead-free)
◆ FCC,CE compliance
| Model Number | VDB07 |
| Place of Origin | Guangdong, China |
| Brand Name | skylab |
| Battery | ER14250 2 * 1200 mAh |
| Voltage | 3.6 v |
| Wireless Standards | bluetooth 4.2 |
| Frequency Range | 2400MHz---2483.5MHz |
| Data Rates | 250 kbps / 1 Mbps / 2 Mbps |
| Sensitivity | -93dBm at 1Mbps BLE |
| Operating Temperature | -40℃~85℃ |
VDB07 application
◆ Indoor Positioning
◆ Information Push
◆ Identification
◆ WeChat Shake
