Bluetooth Beacon

VDB1609

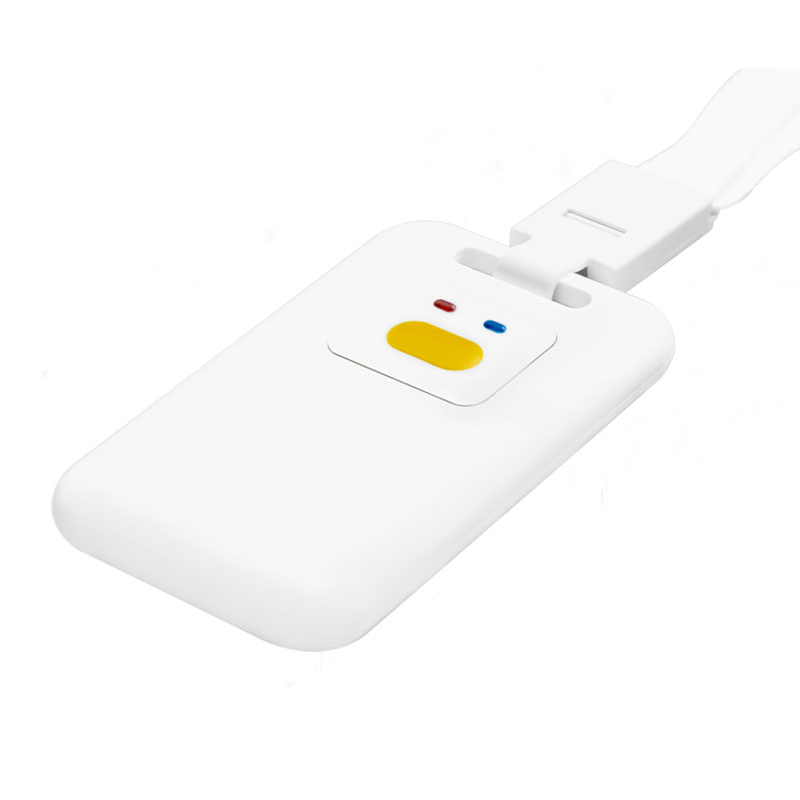

Personnel Positioning Beacon Work Card VDB1609

VDB1609 is a BLE(Bluetooth Low Energy) 4.2 card. It can broadcast its owner’s personal identification information like name and UUID.

Read More
BLE4.2 TX power +4dBm Max
Broadcasting Distance 100 meters
Dimension 85.33 * 53.92 * 7.26mm

VDB1609 is a BLE(Bluetooth Low Energy) 4.2 card. It can broadcast its owner’s personal identification information like name and UUID. And it can be used as indoor positioning card, which can be located by BLE gateway or other BLE locating base-station.

VDB1609 has a rechargeable 600mAh Li-Battery. It can be charged by a magnetic USB connector line.Please follow the magnetic draw direction which will combine the card and connector tightly. Do not let the battery run out for too long, which may damage the battery, and make it difficult to recharge.

VDB1609 has a power key which can also be used as SOS key. Short press can activate the SOS signal,and long press (>3S) can power on or power off the card.

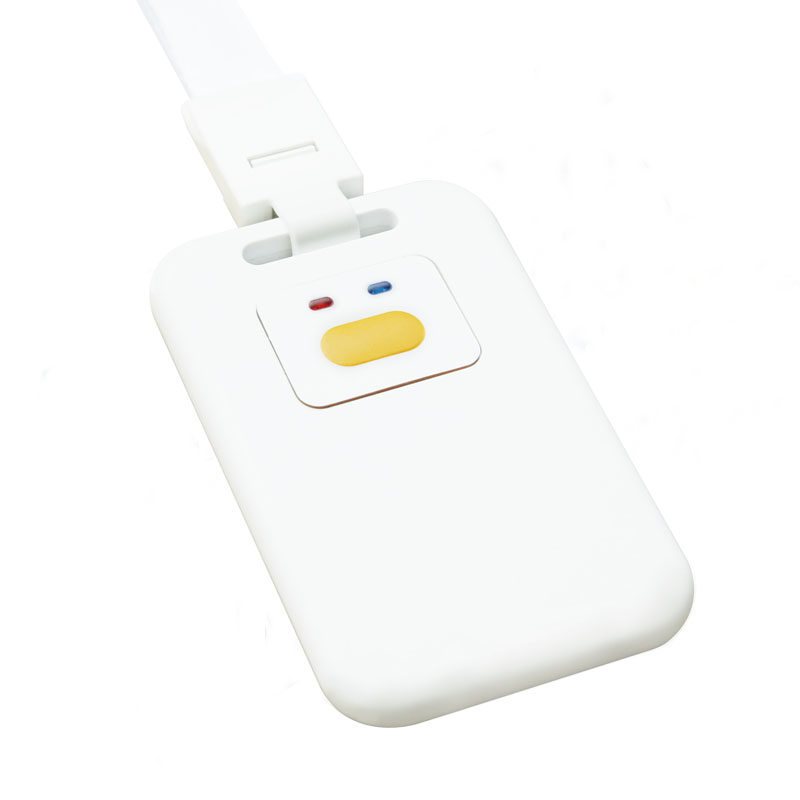

VDB1609 has two LED. The red one will be on when the battery is charging. The blue one will be on when pressing the button.

Technical
Project Parameter
BLE4.2 TX power +4dBm(max)
BLE4.2 RX sensitivity -96dBm
Frequency 2400~2483.5MHz
Battery Life >3 month
Power consumption Idle 5uA, TX 8mA@0dBm, RX 11mA
LED Charging LED, state LED
Key Short press: SOS  Long press: Turn on/off
Broadcasting distance 100 meters
Battery capacity 600mAh
Charging cable Magnetic connect cable
Charging time 4 hours
Program updating Support USB JLINKSupport OTA(Over The Air, by bluetooth updating)
Operating Temp. -20~60℃
IP grade IP67
Dimention 85.33*53.92*7.26mm
Accessory Magnetic connect cable, Hanging belt
