VG05 is a Bluetooth Beacon device. It uses a broadcasting protocol that is based on BLE(Bluetooth Low Energy).
Read More| Antenna Type | PCB Antenna |
| Battery | ER14250 2*1200mAh |
| Voltage | 3.6V |

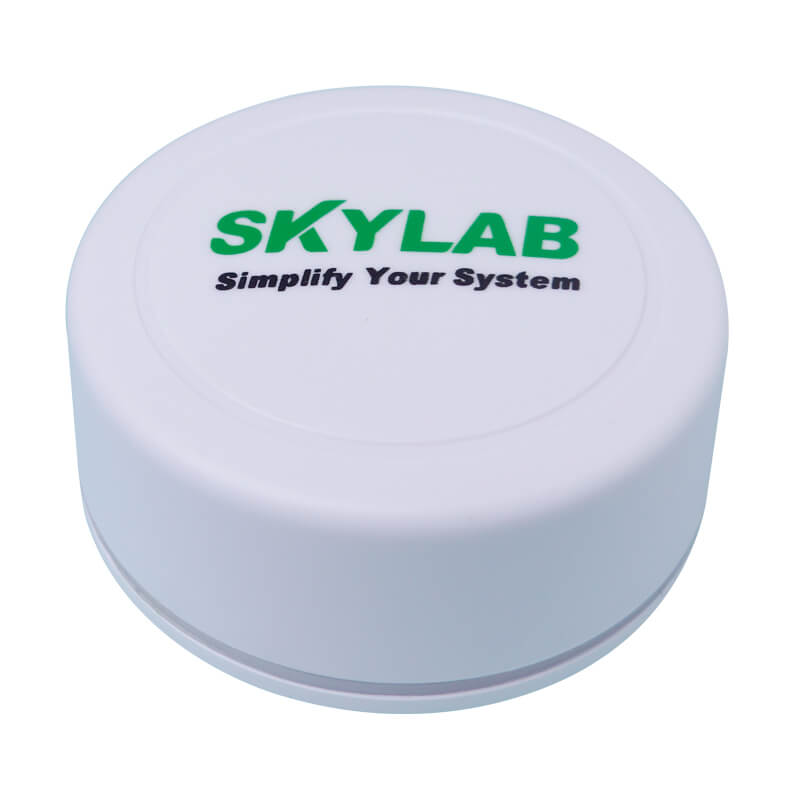

VG05 BLE Bluetooth Beacon for Indoor Positioning is a Bluetooth Beacon device. It uses a broadcasting protocol that is based on BLE(Bluetooth Low Energy ). VG05 broadcasts its general config parameters like UUID, Major, Minor, RSSI, etc. to surroundings over 37, 38 and 39 BLE channels continuously and non-directionally. The broadcasting information can be read by the “Skylab_xbeacon” APP, which is designed by Skylab R&D Team.
VG05 is based on Nordic Bluetooth 4.2 chip. It is powered by 2 ER14250 batteries. Its battery life is related to the internal broadcasting parameters.
◆Low Power Consumption
◆Small, Lightweight, Beautiful appearance
◆Flexible Application
◆Easy to Install(use 3M sticky tape)
◆Advertise Range up to 100 Meters
◆RoHS compliance (Lead-free) FCC, CE compliance
| Hardware Features | |
| Model | VG05 |
| Antenna Type | PCB Antenna |
| Battery | ER14250 2*1200mAh |
| Voltage | 3.6V |
| Dimension(D×H) | 52.1*23.1(±0.3)mm |
| Wireless Features | |
| Wireless Standards | Bluetooth ® 4.2 |
| Frequency Range | 2400MHz---2483.5MHz |
| Data Rates | 250kbps/1Mbps/2Mbps |
| Modulation Technique | GFSK Modulation |
| Wireless Security | AES HW Encryption |
| Transmit Power | Tx Power -20 to +4 dBm in 4 dB Steps |
| Sensitivity | -93dBm at 1 Mbps BLE |
| Work Mode | Peripheral |
| Others | |
| Environment | Operating Temperature: -40℃~85℃ |
| Storage Temperature: -40℃~85℃ | |
| Operating Humidity: 10%~90% Non-condensing | |
| Storage Humidity: 5%~90% Non-condensing | |
The standby time of VG05 is related to the set parameters. The default parameter configuration (transmit power 0dBm, broadcast distance 50 meters, broadcast interval 500ms), VF05 can be used in standby for 5 seconds, see the table below.
| Broadcast power(dBm) | Broadcast distance(m) | Broadcast interval（ms） | Standby time (years) |
| 4 | 70 | 100 | 0.7 |
| 400 | 2.9 | ||
| 500 | 3.6 | ||
| 1000 | 7 | ||
| 0 | 50 | 100 | 1.1 |
| 400 | 4.3 | ||
| 500 | 5.3 | ||
| 1000 | 10 | ||
| -4 | 35 | 100 | 1.4 |
| 400 | 5.7 | ||
| 500 | 7 | ||
| 1000 | 13 |
◆Indoor Positioning
◆Information Push
◆Identification
◆WeChat Shake
