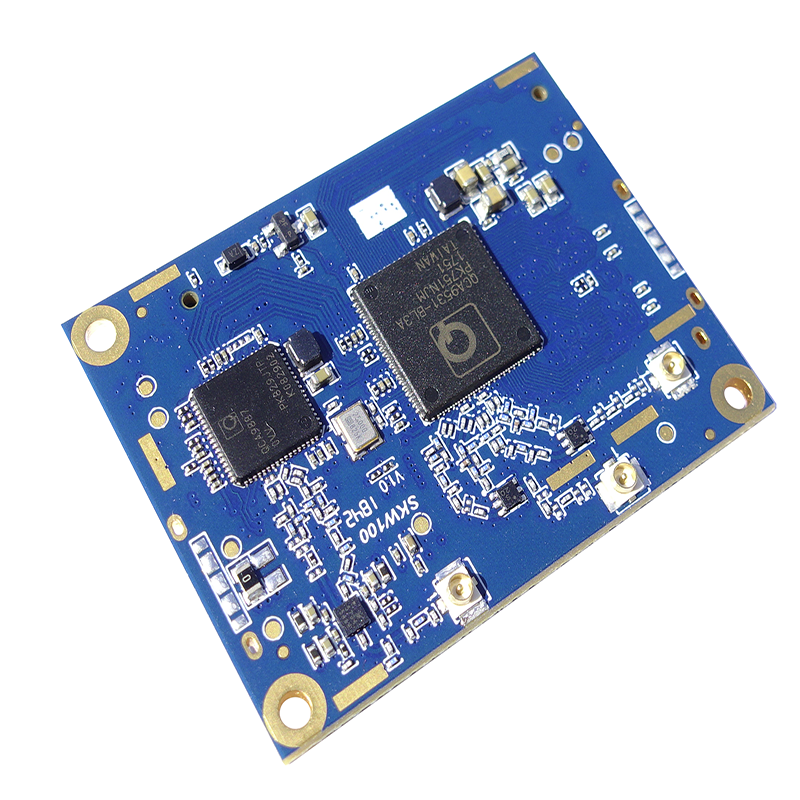

The SKW100 module compliant to 802.11 a/b/g/n/ac Wi-Fi Solution, It integrates a dual-core MIPSCPU(650MHz), 5-port 10/100 fast Ethernet switch, USB2.0, UART.
Read More
| Antenna Type | IPEX |
| Voltage | 3.3V±5% |
| Dimension(L×W×H) | 47.8x 35.4 x 9.5mm |
The SKW100 WIFI module compliant to 802.11 a/b/g/n/ac Wi-Fi Solution, It integrates a dual-core MIPSCPU(650MHz), 5-port 10/100 fast Ethernet switch, USB2.0, UART. The module is suitable for 802.11ac, LTEcat4/5, edge, hot-spot, VPN, AC (Access Control). For consumer electronic devices, the modulerequiring only a external 3.3V power supply .
The module integrates a 2.4GHz 2x2 MIMO WLAN chip with internal PA and LNA and integratesa5GHz1x1 WLAN chip with internal PA and LNA. It supports 2.4GHz operations up to 144 Mbps for 20MHzand300 Mbps for 40 MHz channel respectively, and supports 5GHz operations up to 433 Mbps for 80MHzchannel respectively.
Features：
◆ Compliant to IEEE 802.11b/g/n/ac
◆ 3T3R mode with support for a 733Mbps PHY data rate
◆ DDR2 memory up to 2048Mb
◆ Flash memory up to 512Mb
◆ 4 LAN ports and 1 WAN port
◆ Support USB 2.0 slave device for USB disk and USB 3G/4G dongle and USB camera
◆ Security: WEP64/128, TKIP, AES, WPA, WPA2, WAPI
◆ Support AP/Client/Router mode
◆ ROHS compliance meets environment-friendly requirement
◆ Conform to FCC/CE/IC/ROHS certification standards
| Hardware Features | |
| Model | SKW100 |
| Antenna Type | IPEX |
| Voltage | 3.3V±5% |
| Dimension(L×W×H) | 47.8x 35.4 x 9.5mm |
| Wireless Features | |
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency Range | 2412GHz---2484MHz & 5180---5825MHz |
| Data Rates | IEEE 802.11b : 1,2,5.5,11Mbps |
| IEEE 802.11g : 6,9,12,18,24,36,48,54Mbps | |
| IEEE 802.11n : MCS0--MCS7 @ HT20 /2.4GHz band | |
| MCS0--MCS7 @ HT40 /2.4GHz band MCS0--MCS9 @ HT40 /5GHz band | |
| IEEE 802.11ac : MCS0--MCS9 @ VHT80 /5GHz band | |
| Receiver Sensitivity | VHT80 MCS9 : -58dBm@10% PER(MCS9) /5GHz band |
| HT40 MCS9 : -63dBm@10% PER(MCS9) /5GHz band | |
| HT40 MCS7 : -70dBm@10% PER(MCS7) /2.4GHz band | |
| HT20 MCS7 : -71dBm@10% PER(MCS7) /2.4GHz band | |
| 54M: -76dBm@10% PER 11M: -88dBm@ 8% PER | |
| Modulation Technique | DSSS (DBPSK, DQPSK, CCK) |
| OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 125-QAM, 256-QAM) | |
| Wireless Security | WPA/WPA2, WEP, TKIP |
| Work Mode | Bridge/Gateway/AP Client |
| Others | |
| Certification | ROHS |
| Environment | Operating Temperature: -20℃~55℃ |
| Storage Temperature: -40℃~85℃ | |
| Operating Humidity: 10%~90% non-condensing | |
| Storage Humidity: 5%~90% non-condensing | |
◆ USB WiFi Camera
◆ IOT (internet of things)
◆ WiFi AP
◆ 3G/4G Wi-Fi Router
◆ WiFi Repeater
◆ Building Automation
◆ Home Automation
◆ Smart Home Gateway
◆ Industry Control
