Requirements for Bluetooth modules in intelligent security systems and applicable modules for Tiangong measurement and control

2024-10-22/ By Admin

The Bluetooth module in the intelligent security system needs to have characteristics such as low power consumption, high security, stable connectivity, suitable transmission distance and penetration, small size and easy integration, multi device connection capability, anti-interference ability, and fast response. The SKB369 Bluetooth 4.2 low-power module from Tiangong Measurement and Control is suitable for devices with strict cost and power requirements, such as Bluetooth door locks, sensors, etc; The SKB501 Bluetooth 5.0 module is suitable for intelligent security scenarios that require high transmission distance and performance, such as large venue security monitoring, remote intelligent door locks, etc.

The Bluetooth module in intelligent security systems usually needs to have the following characteristics:

1. Low power consumption

The devices in intelligent security systems usually require long-term operation, so the low-power characteristics of Bluetooth modules are crucial, which can reduce the energy consumption of devices, extend battery life or reduce energy costs.

2. High security

The security system involves the safety of personnel and property, and the Bluetooth module needs to have a high degree of security to prevent data leakage and illegal intrusion. For example, supporting data encryption, identity authentication, and other functions to ensure that only authorized devices can connect and access the system.

3. Stable connectivity

To ensure that the Bluetooth module can stably connect various devices in the security system, such as cameras, sensors, door locks, etc., to avoid connection interruptions or signal loss, in order to ensure the normal operation of the security system.

4. Transmission distance and penetrability

According to the specific application scenarios of the security system, the Bluetooth module needs to have appropriate transmission distance and penetration capability. For example, in larger places or environments with obstacles, Bluetooth modules need to be able to stably transmit signals within a certain distance and penetrate objects such as walls, doors, and windows to achieve effective coverage of various areas.

5. Small size and easy integration

Security equipment usually has certain limitations on space, so Bluetooth modules need to have the characteristic of small size in order to be easily integrated into various security equipment without occupying too much space.

6. Multi device connectivity capability

Being able to connect multiple security devices simultaneously, achieving interconnectivity and collaborative work between devices, and improving the intelligence and management efficiency of security systems.

7. Anti-interference ability

The environment in which the security system is located may have various wireless signal interferences, and Bluetooth modules need to have strong anti-interference capabilities to ensure stable operation in complex electromagnetic environments.

8. Quick response

In security systems, such as access control systems, alarm systems, etc., Bluetooth modules need to be able to respond quickly to achieve timely unlocking, alarm and other functions, improving the real-time and reliability of the system.

The following Bluetooth modules from Tiangong Measurement and Control are more suitable for intelligent security systems:

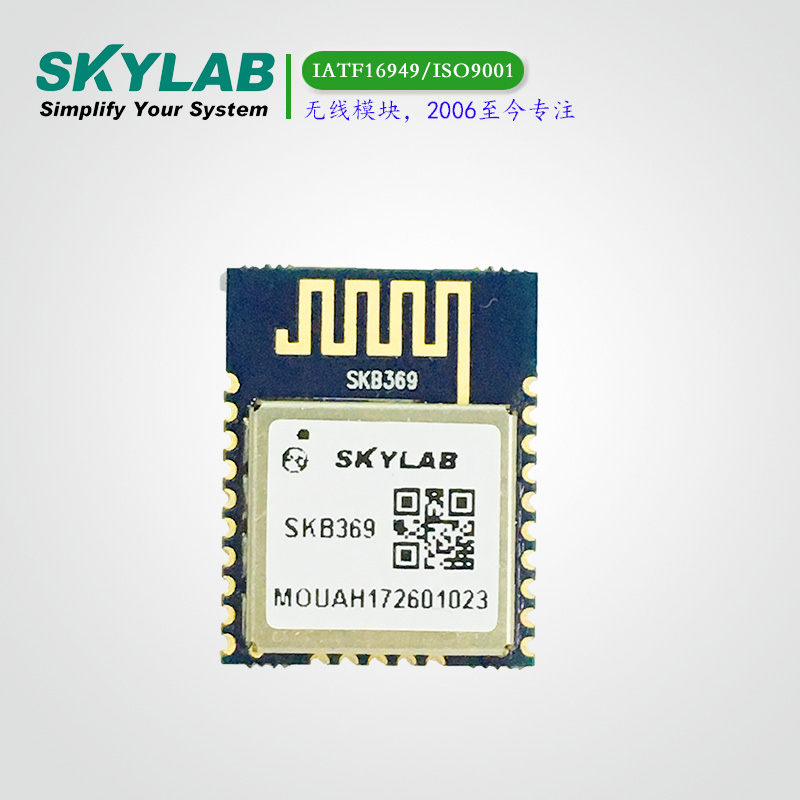

1. SKB369

Features: This is a highly integrated Bluetooth 4.2 low-power module developed based on NordicnRF52832, featuring 32-bit ARM Cortex-M4FCPU, flash memory, and analog and digital computer peripherals. Supports ANT protocol, has a pair of NFC-A tag interfaces for pairing, and also supports Mesh networking. In addition to supporting Bluetooth 4.2, it can also be upgraded to support 5.0 through firmware.

Applicable scenarios: Suitable for intelligent security devices with strict requirements for cost and power consumption, such as some simple Bluetooth door locks, sensors, etc. Its low-power characteristics can meet the needs of long-term operation of the device.

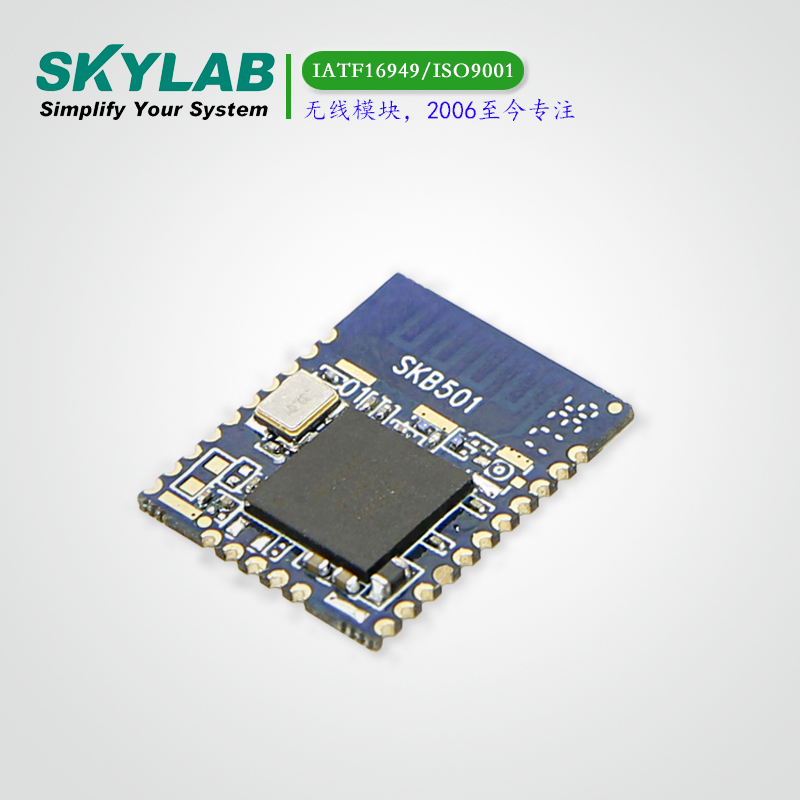

2. SKB501

Features: Bluetooth 5.0 module, based on Nordic nRF52840 solution, with advantages such as good performance, low power consumption, high receiving sensitivity, and long transmission distance. Supporting SPI/UART/TWI communication protocols, with small packaging, it can be well embedded into customer products, while meeting customers' needs for rapid programming of Bluetooth products again.

Applicable scenarios: It performs well in intelligent security scenarios that require high transmission distance and performance, such as security monitoring systems in large venues, remote smart door locks, etc. Its long transmission distance and good performance can ensure the stable operation of the system.
